Intelligent charging and data synchronization dock for TX200P/TX100P Conducted Electrical Devices. Automatically uploads usage logs and device diagnostics to the MShield EMS platform upon docking — ensuring accountability and operational readiness.
Streamline CEW device management with simultaneous charging and automated usage data synchronization — keeping every device mission-ready and fully accountable.

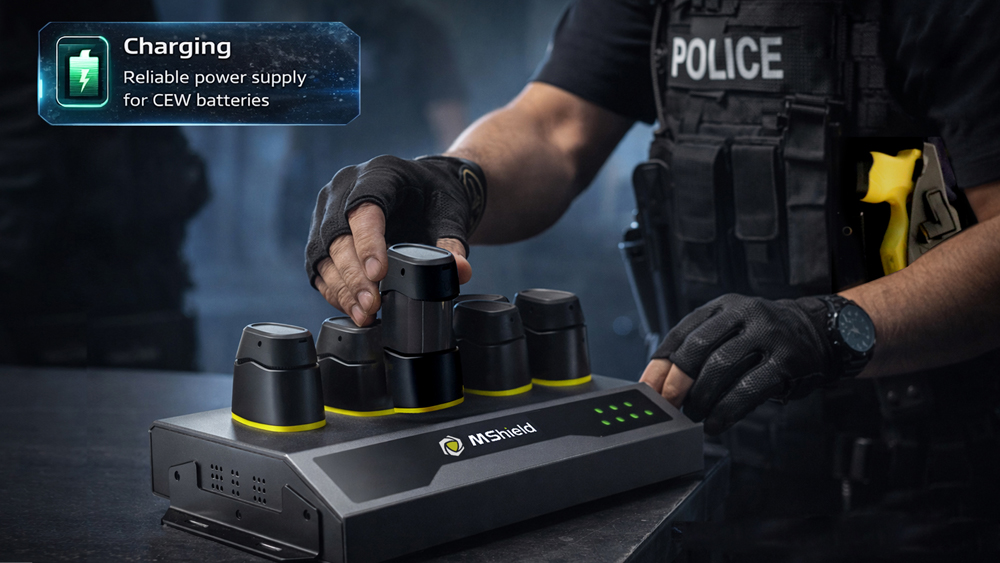

Charge multiple TX200P and TX100P devices simultaneously with intelligent power management. Each port delivers optimized charging current with individual status indicators, ensuring all devices are fully charged and ready for deployment.

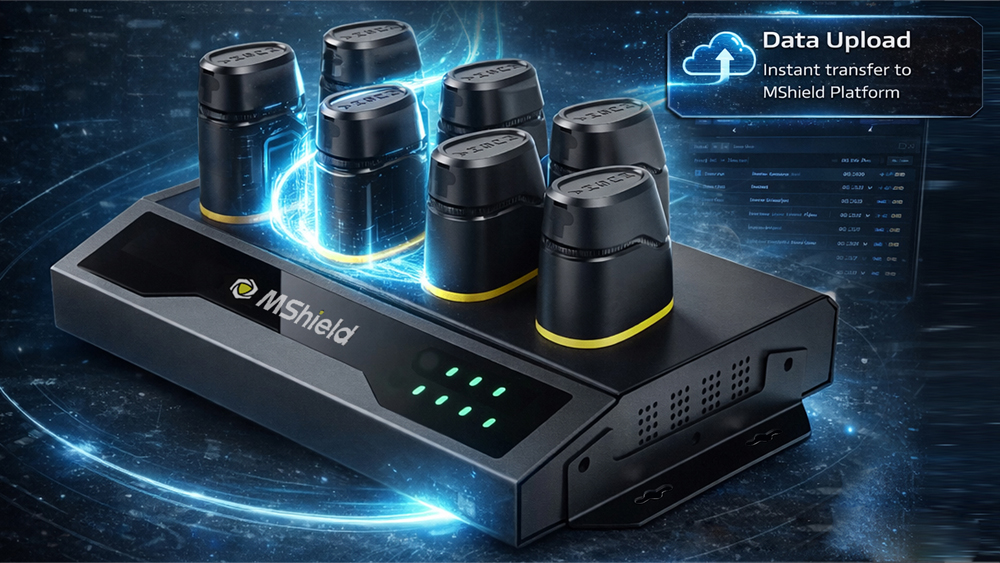

Upon docking, usage logs — including activation records, discharge counts, and battery cycles — are automatically uploaded to the MShield EMS platform. No manual intervention required, eliminating gaps in accountability reporting.
Built-in RJ45 Ethernet port ensures stable, high-speed data transmission. Direct network connection to the MShield EMS server enables real-time device synchronization and firmware updates.
Every docking event records officer ID, device serial number, charge level, and usage statistics. Complete audit trail with timestamps ensures full compliance with use-of-force reporting requirements.
Individual LED indicators for each port display real-time charging and data transfer status. Quickly identify which devices are fully charged, which are syncing data, and which require attention.
Space-efficient design fits standard 19-inch server racks. Durable metal housing with thermal ventilation ensures reliable operation in armories, evidence rooms, and IT facilities.
The MS-DB07 combines charging and usage data synchronization into a single seamless operation — keeping devices ready and records complete.
Each charging port delivers optimized power output for TX200P and TX100P devices. Intelligent charging management prevents overcharging, monitors battery health, and extends device lifespan. Full charge from depleted state takes approximately 4 hours.
As soon as a device is docked, the station initiates secure data transfer to the MShield EMS platform. Usage logs, activation records, and diagnostic data are uploaded via RJ45 network with AES-256 encryption, maintaining a complete accountability chain with no manual steps.
The CEW Docking Station is a critical node in the MShield device lifecycle — from field deployment to accountability reporting.
Officer carries TX200P/TX100P on duty. All activations and usage events are logged internally.
Officer returns to station and docks the device. Charging begins immediately.
Usage logs and diagnostics are automatically uploaded to MShield EMS via secure network.
Complete accountability reports with timestamps are available for review, audit, and compliance.
The CEW Docking Station serves as the physical bridge between field operations and the MShield Evidence Management System. Every docking event is logged, every usage record is encrypted, and every transfer is verified.
| Model | MS-DB07 |
| Product Name | CEW Docking Station |
| Brand | MShield |
| Category | Accessories / Information Devices |
| Compatible Devices | TX200P / TX100P Conducted Electrical Devices |
| Charging Ports | 7 docking ports |
| Connect Mode | 6-pin pogo-pin contact |
| USB Port | 1 × Type-C port |
| Power Input | 12V / 5A |
| Power for Charging | 8.4V / 1.0A per port |
| RJ45 Port | 1 × 100 Mbps Ethernet port |
| Protocol | TCP/IP, UDP |
| IP Address | Static IP & DHCP |
| Power Adapter | 1 × 12V power adapter |
| Ethernet Cable | 1 pc |
| Material | Aluminum Base + ABS Dock |
| Indicator Lights | 7 charging indicators + 1 power indicator + 1 system indicator |
| Reset | 1 reset button |
| Operating Temperature | -20–60°C |
| Operating Humidity | 40%–80% |
| Dimensions | 340.0 × 215.0 × 74.0 mm |
| Weight | Approx. 1 kg |
Contact our team to learn how the CEW Docking Station integrates with the MShield ecosystem.
